Handling Bias and RoPE in QK Attention with a Unified Geometric View

A practical geometric view for analyzing QK circuits with bias and RoPE using a single bilinear form
Pre-print Finding Highly Interpretable Prompt-Specific Circuits in Language Models

This note summarizes Appendix B of the paper above and gives a geometric intuition for handling QK bias and RoPE using a single bilinear form.

1. QK attention as a bilinear map

For one attention head, the pre-Softmax score between destination token $d$ and source token $s$ is defined as

\[A'_{ds} = x_d^\top \Omega x_s, \qquad \Omega = W_Q W_K^\top.\]

So QK analysis is fundamentally a bilinear map: destination-side vectors are matched against source-side vectors through $\Omega$. Using SVD,

\[\Omega = \sum_{k=1}^{R} u_k \sigma_k v_k^\top,\]

gives paired directions $(u_k, v_k)$ that define candidate communication channels.

A growing line of work studies QK structure in singular-vector coordinates and shows that this basis captures interpretable communication structure.

Pan et al. analyze query-key interaction in vision transformers through spectral structure, showing that singular directions provide a useful lens for understanding attention behavior . Merullo et al. study inter-layer communication in language transformers and similarly motivate analyzing how structured directions are transmitted and read across layers . Franco and Crovella introduce sparse attention decomposition, explicitly using QK singular vectors to isolate low-dimensional attention-relevant signal components for circuit tracing .

This post builds on that perspective and focuses on a practical extension: keeping one fixed bilinear core even when attention includes bias and/or RoPE terms.

3. Why bias and position terms make QK analysis harder

In practice, many models do not use the plain form $x_d^\top \Omega x_s$:

If handled naively, this introduces either homogeneous-coordinate bookkeeping or position-specific $\Omega$ matrices, which complicates implementation and interpretation.

The Appendix B goal is to keep a single fixed $\Omega$ per head and absorb bias/position effects into transformed token vectors.

4. Bias: translate first, then project

For bias models,

\[A'_{ds} = (x_d^\top W_Q + b_Q^\top)(x_s^\top W_K + b_K)^\top.\]

Under the (empirically supported) well-conditioning assumptions on $W_Q$ and $W_K$, we can define bias-derived offsets $c_d, c_s$ through pseudoinverse mappings (e.g., $c_d^\top = b_Q^\top W_Q^{\dagger}$, similarly for $c_s$) and rewrite:

\[A'_{ds} = (x_d^\top + c_d^\top)\,\Omega\,(x_s + c_s).\]

As a concrete toy illustration, the figure uses a map $P:\mathbb{R}^3\to\mathbb{R}^2$ as an analogue of the Q/K projection. Read the two rows as two paths:

The right panel compares the endpoints, showing the same commutation pattern used in the attention derivation.

5. RoPE: rotate first, then project

For RoPE models, scores involve position rotations $R_d, R_s$, often written as a position-dependent effective matrix. Appendix B shows we can instead define token-space linear maps $M_d, M_s$ and keep a fixed $\Omega = W_Q W_K^\top$:

\[A'_{ds} = (x_d^\top M_d)\,\Omega\,(M_s x_s).\]

Using the Appendix B.2 construction:

\[M_d = W_Q R_d W_Q^{\dagger}, \qquad M_s = (W_K^\top)^{\dagger} R_s^\top W_K^\top,\]

which gives

\[(x_d^\top M_d)\,\Omega\,(M_s x_s) = x_d^\top W_Q R_d R_s^\top W_K^\top x_s = x_d^\top W_Q R_{(d-s)} W_K^\top x_s.\]

As a concrete toy illustration, the figure again uses a $\mathbb{R}^3\to\mathbb{R}^2$ setup. Read the two rows as two paths:

Here $R_3$ and $R_2$ use the same angle parameter $\theta$ (controlled by the slider). The right panel compares the endpoints. This mirrors Appendix B: position effects are absorbed into transformed vectors while preserving a fixed core bilinear map.

6. When the model has both RoPE and Bias

These two derivations combine directly, so bias+RoPE models (e.g., Pythia) can still be written with transformed token vectors and one fixed $\Omega = W_Q W_K^\top$.

7. Appendix: condition numbers in practice

The derivations rely on $W_Q$ and $W_K$ being well-conditioned (full column rank, stable pseudoinverse behavior). Appendix B.4 reports this holds for the studied models (condition numbers below 1000, usually much smaller), including GPT-2 small, Pythia-160M, and Gemma-2 2B.

GPT-2 small

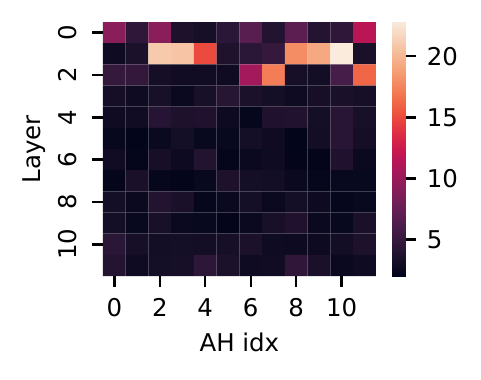

Condition numbers of $W_Q$ across layers and heads.

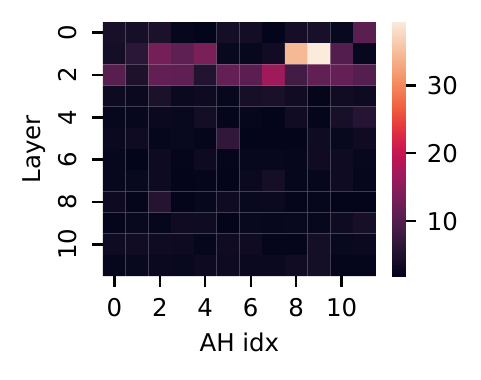

Condition numbers of $W_K$ across layers and heads.

Pythia-160M

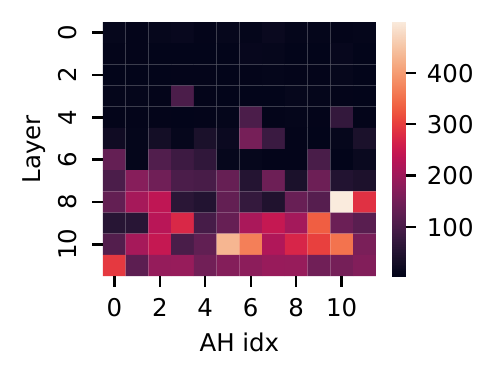

Condition numbers of $W_Q$ across layers and heads.

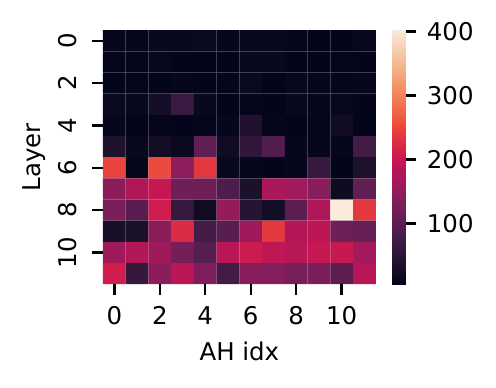

Condition numbers of $W_K$ across layers and heads.

Gemma-2 2B

Condition numbers of $W_Q$ across layers and heads.

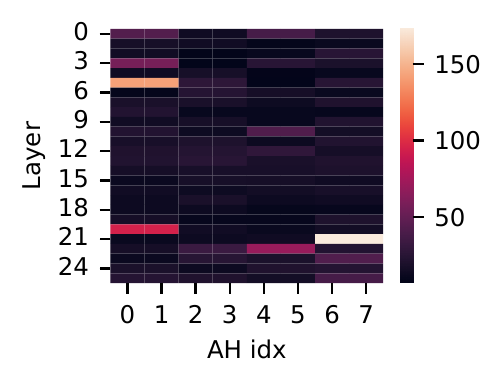

Condition numbers of $W_K$ across layers and heads.

Practical takeaway

With this reformulation, ACC++ can treat no-bias, bias-only, RoPE-only, and bias+RoPE models under one unified bilinear interface. In code terms: one $\Omega$, one SVD per head, same downstream signal extraction/tracing logic.
